Vue admin template 动态路由配置

本文将详细介绍，如何使用 Vue admin template 配置动态路由。

登陆配置部分不过多介绍，可参考 https://fdevops.com/2020/09/09/vue-django-5171。

配置路由参数

路由参数存入 Vuex 内。

src/store/modules/user.js

import { login, getInfo, getMenuTree } from '@/api/user'
import { getToken, setToken, removeToken } from '@/utils/auth'
import { resetRouter } from '@/router'

const getDefaultState = () => {
  return {
    token: getToken(),
    name: '',
    avatar: '',
    menus: '' // 新增
  }
}

const state = getDefaultState()

const mutations = {
  RESET_STATE: (state) => {
    Object.assign(state, getDefaultState())
  },
  SET_TOKEN: (state, token) => {
    state.token = token
  },
  SET_NAME: (state, name) => {
    state.name = name
  },
  SET_AVATAR: (state, avatar) => {
    state.avatar = avatar
  },
  SET_MENUS: (state, menus) => { // 新增
    state.menus = menus
  }
}

const actions = {
  ...

  // get user info
  getInfo({ commit, state }) {
    return new Promise((resolve, reject) => {
      getInfo().then(response => {
        const { data } = response

        if (!data) {
          return reject('Verification failed, please Login again.')
        }

        const { username } = data

        // 新增 模拟路由表
        const menus = [
          {
            path: '/system',
            component: 'Layout',
            meta: {
              title: '系统管理',
              icon: 'form'
            },
            children: [
              {
                path: '/user',
                component: 'system/user/index',
                meta: {
                  title: '用户管理',
                  icon: 'form'
                }
              }
            ]
          }
        ]
        menus.push({ path: '*', redirect: '/404', hidden: true }) // 新增

        commit('SET_NAME', username)
        commit('SET_MENUS', menus) // 新增，将路由表保存到 Vuex 中
        resolve(data)
      }).catch(error => {
        reject(error)
      })
    })
  },

  ...
}

export default {
  namespaced: true,
  state,
  mutations,
  actions
}

getter 内添加数据。

src/store/getters.js

const getters = {
  sidebar: state => state.app.sidebar,
  device: state => state.app.device,
  token: state => state.user.token,
  avatar: state => state.user.avatar,
  name: state => state.user.name,
  menus: state => state.user.menus // 新增
}
export default getters

需注意，既然使用了动态路由，则需要将 router.js 中的非必要的路由删除。

组件导入配置

通过配置全局路由变量，在数据渲染的时候，使用全局变量进行渲染路由参数。

配置生产和开发两种模式的组件引入方式。进行组件的引入。

创建两个引入组件文件，分别是 _import_development.js 和 _import_production.js。

src/router/_import_development.js

module.exports = file => require('@/views/' + file + '.vue').default

src/router/_import_production.js

module.exports = file => () => import('@/views/' + file + '.vue')

配置权限文件。

src/permission.js

import router from './router'
import store from './store'
import { Message } from 'element-ui'
import NProgress from 'nprogress' // progress bar
import 'nprogress/nprogress.css' // progress bar style
import { getToken } from '@/utils/auth' // get token from cookie
import getPageTitle from '@/utils/get-page-title'
import Layout from '@/layout'
const _import = require('./router/_import_' + process.env.NODE_ENV) // 获取组件的方法

NProgress.configure({ showSpinner: false }) // NProgress Configuration

const whiteList = ['/login'] // no redirect whitelist

router.beforeEach(async(to, from, next) => {
  // start progress bar
  NProgress.start()

  // set page title
  document.title = getPageTitle(to.meta.title)

  // determine whether the user has logged in
  const hasToken = getToken()

  if (hasToken) {
    if (to.path === '/login') {
      // if is logged in, redirect to the home page
      next({
        path: '/'
      })
      NProgress.done()
    } else {
      const hasGetUserInfo = store.getters.name
      if (hasGetUserInfo) {
        next()
      } else {
        try {
          // get user info
          await store.dispatch('user/getInfo') // 请求获取用户信息
          await store.dispatch('user/getRouter') // 获取路由表
          if (store.getters.menus.length < 1) {
            global.RouterList = []
            next()
          }
          const menus = filterAsyncRouter(store.getters.menus) // 1.过滤路由

          router.addRoutes(menus) // 2.动态添加路由
          global.RouterList = menus // 3.将路由数据传递给全局变量，做侧边栏菜单渲染工作
          next({
            ...to,
            replace: true
          })
          // next()
        } catch (error) {
          // remove token and go to login page to re-login
          await store.dispatch('user/resetToken')
          Message.error(error || 'Has Error')
          next(`/login?redirect=${to.path}`)
          NProgress.done()
        }
      }
    }
  } else {
    /* has no token*/

    if (whiteList.indexOf(to.path) !== -1) {
      // in the free login whitelist, go directly
      next()
    } else {
      // other pages that do not have permission to access are redirected to the login page.
      next(`/login?redirect=${to.path}`)
      NProgress.done()
    }
  }
})

router.afterEach(() => {
  // finish progress bar
  NProgress.done()
})
// 遍历后台传来的路由字符串，转换为组件对象
function filterAsyncRouter(asyncRouterMap) {
  const accessedRouters = asyncRouterMap.filter(route => {
    if (route.component) {
      try {
        if (route.component === 'Layout') {
          route.component = Layout
        } else {
          route.component = _import(route.component) // 导入组件
        }
      } catch (e) {
        Message.error(e.message)
      }
    }

    route.meta = {
      title: route.title,
      icon: route.icon
    }

    if (route.children && route.children.length) {
      route.children = filterAsyncRouter(route.children)
    }
    return true
  })

  return accessedRouters
}

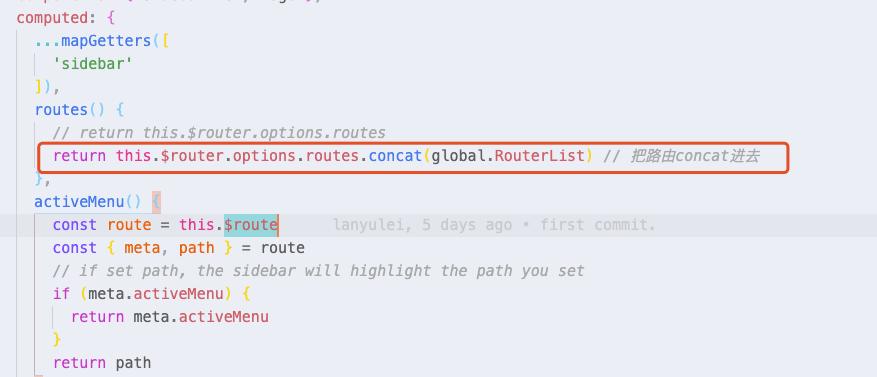

最后修改菜单渲染的文件。

src/layout/components/Sidebar/index.vue

routes() {
  // return this.$router.options.routes
  return this.$router.options.routes.concat(global.RouterList) // 把路由concat进去
}

到这里我们通过模拟路由数据的方式，来实现了我们的动态路由，但是呢，我们经常会遗忘掉一个问题，就是创建我们路由对应的组件文件，因为如果你不去创建路由对应的组件文件的话，则路由是错误的。甚至无法登陆成功。因此，一定！一定！一定要创建路由对应的组件文件。

后端数据渲染路由表

上面的配置都完善了后，然后我们配置的模拟路由测试也没问题了。我们就基于上面的配置，改造成获取后端路由数据，来动态渲染路由表的效果了。

需注意，如果要配置后端数据渲染路由表的话，那么则需要将上面模拟路由数据删除。

在 src/store/modules/user.js 内添加 actions 如下：

// get router
getRouter({ commit, state }) {
  return new Promise((resolve, reject) => {
    getMenuTree().then(response => {
      const list = response.data
      if (!list) {
        reject('未查询到菜单数据，请确认。')
      }

      list.push({ path: '*', redirect: '/404', hidden: true })

      commit('SET_MENUS', list)

      resolve(list)
    })
  })
}

后端接口代码如下：

class MenuTreeViews(APIView):
    def get(self, request, *args, **kwargs):
        res = {
            "code": 200,
            "msg": "获取菜单树成功",
            "data": []
        }

        try:
            # 递归获取菜单树
            def recursion_menu(menu, roles):
                m = format_menu(menu)
                r_string = []
                for r in roles:
                    r_string.append(str(r))
                menuRaw = Menus.objects.raw(f"""select user_menus.* from user_menus left join user_role_related_menus on user_menus.id = user_role_related_menus.menu where user_role_related_menus.role in ({','.join(r_string)}) and user_menus.parent = {menu["id"]};""")

                m_list = []
                for mr in menuRaw:
                    d = {}
                    for mc in menuRaw.columns:
                        d[mc] = getattr(mr, mc)
                    m_list.append(d)
                tmp_m_list = []
                for i in m_list:
                    tmp_m_list.append(format_menu(i))
                    recursion_menu(i, roles)

                m["children"] = tmp_m_list
                return m

            # 查询用户角色
            userinfo = UserInfo.objects.get(username=request.user.username)
            roles = [r[0] for r in list(UserRoles.objects.filter(user_id=userinfo.id).values_list("role_id"))]

            # 查询当前角色的权限
            permissions = [p[0] for p in list(RoleMenus.objects.filter(role__in=roles).values_list("menu"))]
            menu_list = [p[0] for p in list(Menus.objects.filter(id__in=permissions, menu_type=1).values_list("parent").distinct())]

            top_menu_list = list(Menus.objects.filter(id__in=menu_list).values())
            for i in top_menu_list:
                res["data"].append(recursion_menu(i, roles))

        except Exception as e:
            res["code"] = 400
            res["msg"] = f"获取菜单树失败, {e}"

        return JsonResponse(res)
